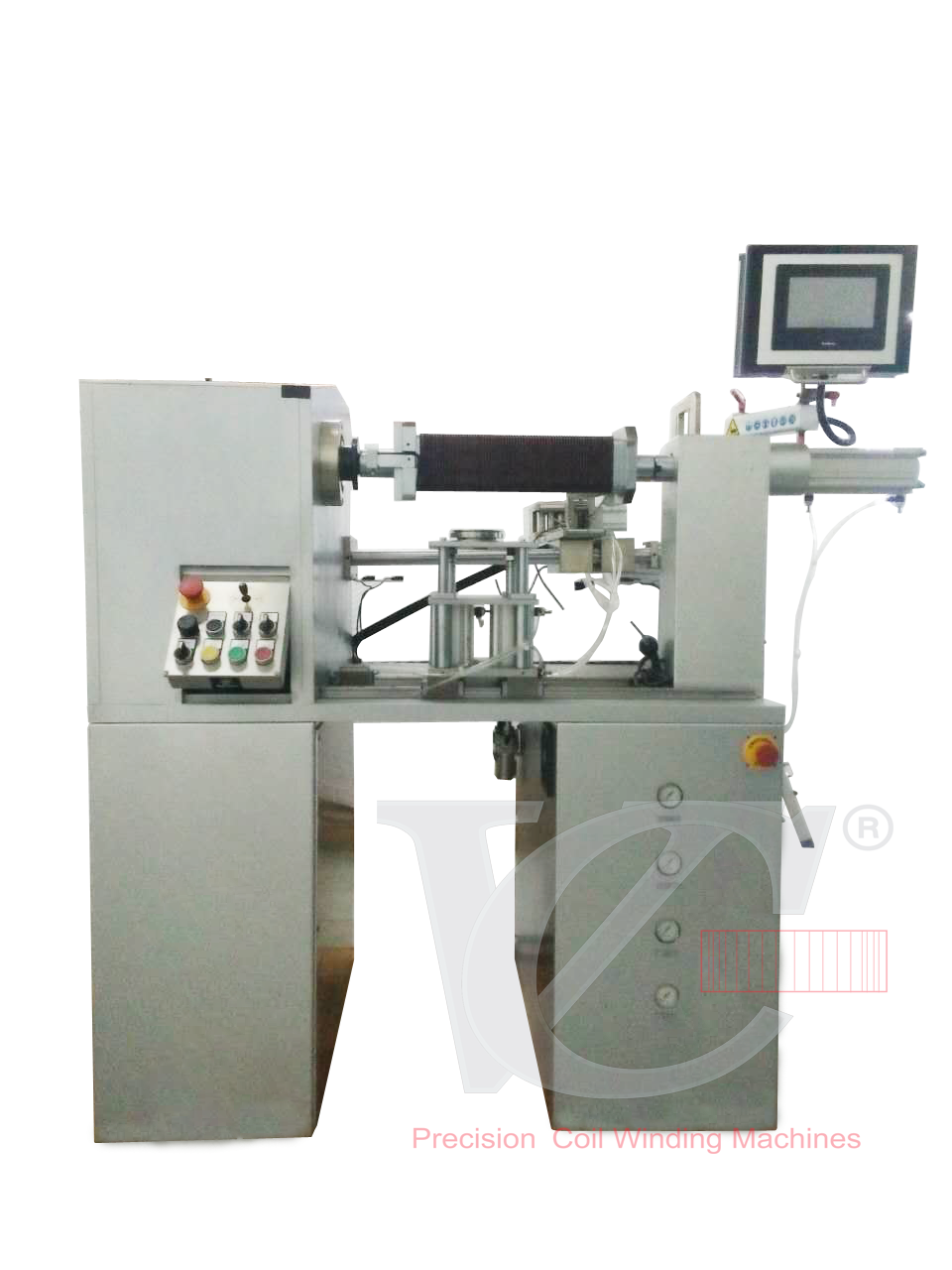

| TECHNICAL DATA |
| |
| CONTRLLER: |
| PLC control |
| Multi Language Selection |
| |
| DISPLAY: |
| Colour touch panel 8”or 12” |
| Continuous read out of operation details |
| |
| PROGRAMS: |
| 999 Programs: |
| Autoduction calculation of pitch,layer full ,layer spread |
| |
| PROGRAMMING: |
| User friendly graphic for easy understanding |
| Only 1 programming screen enables set up in very short tine |
| |
| DATA MEMORY : |
| Interface for software updates USB slot |
| Only 1 production screen enables set up in very short time |
| |
| OPERATOR CONTROLS: |
| Control Board Function/Save/Teach keys |
| Hand Control Unit:Joystick,start/stop speed knob |
| Foot Pedals:speed control,spindle brabe,creep |
| |
| SETTING OF LEFT AND RIGHT LIMITS: |
| With teach system |
| |
| SPEED AND TORQUE CHANGE: |
| 3 Pulleys mounted on headstock for quick change of basic ralios. |
| Gear box with 2 steps(low/high) for quick change of torque |
| and speed. |
| |
| TRAVERSE: |
| Precision ball screw |
| Servo Motor 0.45kw |
| |
| MOTOR POWER: |
| Servo Motor 2.0kw |
| |
| MACHINE WEIGHT: |
| Approx.30 kg net,50 kg gross |
| |
| MACHINE SPACE: |
| Approx.800mm x 1000mm |
| |
| BASIC MACHINE CONSISTS OF: |
| 1x headstock,iron casting |
| 1x winding spindle with facelate |
| 1x traverse unit |
| 1x wrie guide arm |
| 1x safety protective cover |
| 1x touch panel |
| 1x control unit |
| 1x foot pedal(speed control and spindle break) |
| 1x Gear Box(with 2 steps) |
| 1x Machine table |
